ST MARY'S CATHEDRAL
NEWCASTLE UPON TYNE, UK

The new organ in St Mary's Cathedral was completed in March 2013 . The design aims to respond to the surrounding architecture of Pugin's church, while offering a striking contemporary instrument for both choral and congregation accompaniment, performance and teaching. The instrument stands on a new west gallery,which will also accommodate the cathedral choir. The gallery and organ cases have framing of oak, with panelling of deep blue and red, further enriched with gilded chamfers and stars. The pipeshades, designed and carved by Keith German, feature flowers with Marian symbolism.



Great
1
  Bourdon
16

manual II
2
  Open Diapason
8


3
  Stopped Diapason
8


4
  Harmonic Flute
8


5
  Cone Gamba
8


6
  Principal
4


7
  Spitz Flute
4


8
  Fifteenth
2


9
  Cornet III
2
 2/3

10
  Full Mixture IV
2


11
  Sharp Mixture III
 2/3


12
  Trumpet
8


13
  Chamade
8


  Tremulant




Swell
14
  Open Diapason
8

manual III
15
  Chimney Flute
8


16
  Viola da Gamba
8


17
  Voix Céleste
8


18
  Principal
4


19
  Traverse Flute
4


20
  Flageolet
2


21
  Mixture IV
1
 1/3

22
  Contra Fagotto
16


23
  Trumpet
8


24
  Hautboy
8

  25   Vox Humana
8


26
  Clarion
4


  Tremulant




Choir
27
  Gedackt
8

manual I
28
  Salicional
8


29
  Principal
4


30
  Chimney Flute
4


31
  Nazard
2
 2/3

32
  Octave
2


33
  Recorder
2


34
  Tierce
1
 3/5
  35   Mixture III
1


36
  Cromorne
8


  Tremulant




Pedal
37
  Contra Bass
16


38
  Open Diapason
16


39
  Sub Bass
16


40
  Octave
8


41
  Bass Flute
8


42
  Choral Bass
4


43
  Mixture IV
2
 2/3

44
  Bombarde
16


45
  Fagott
16


46
  Trumpet
8


Couplers     Sw-Gt  Sw-Ch  Ch-Gt
      Sw-P  Gt-P   Ch-P




Tracker key and pedal actions : slider soundboards

Electric stop & combination action



The new organ and gallery

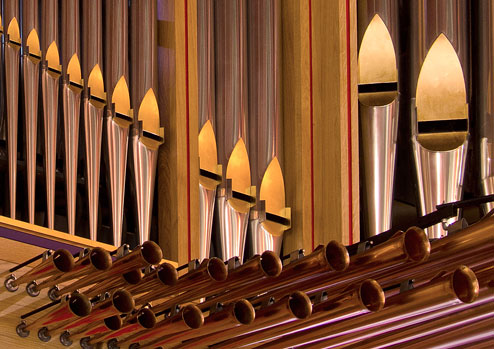

Front pipes and Chamade



First photo of the Choir organ after unwrapping the front pipes on 11th January

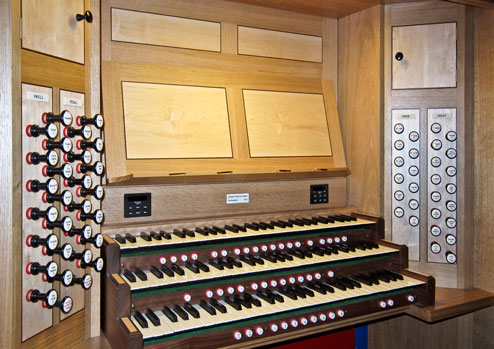

Console
