CHURCH OF NES, NESBYEN, NORWAY

Great
1
  Bourdon
16


2
  Open Diapason
8


3
  Stopped Diapason
8


4
  Gamba
8


5
  Principal
4


6
  Spitzflute
4


7
  Fifteenth
2


8
  Sesquialtera
II


9
  Mixture
IV


10
  Sharp Mixture
II


11
  Cremona
8


12
  Trumpet
8


i
  Tremulant

ii
  Swell to Great

Swell
13
  Chimney Flute
8


14
  Salicional
8


15
  Voix Celeste
8


16
  Principal
4


17
  Gemshorn
2


18
  Larigot
1
1/3

19
  Mixture
IV


20
  Trumpet
8


21
  Oboe
8


22
  Clarion
4


iii
  Tremulant

Echo
23
  Bourdon
8


24
  Cornet
IV


Pedal
25
  Subbass
16


26
  Flute
8


27
  Posaune
16


iv
  Great to Pedal

v
  Swell to Pedal


Tracker key action : Slider soundboards

Electric stop and combination actions

> click here to view main image of Nesbyen organ



Nesbyen is situated in the Hallingdal valley of southern Norway, some 175 km north west of Oslo. Nes kirke is a typical Norwegian wooden church, its white painted exterior standing among trees on the outskirts of the town.

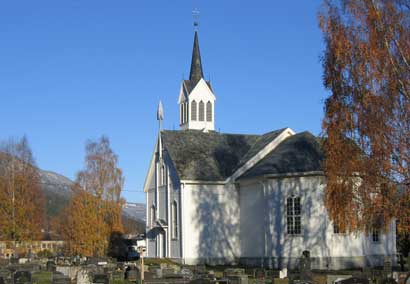

Nesbyen church

The new instrument for Nesbyen was the first organ of real size to have been exported from Britain to Norway in recent times.  Construction began in England during 1998 and the organ was installed on the west gallery of the church in March 1999.  Whilst the organ is predominantly English in its overall style and conception, the stoplist was planned with a leaning towards the French classical school. It is a versatile instrument, well able to do justice to a wide range of repertoire from all periods.The consultant for the project was Dr. John Rowntree.

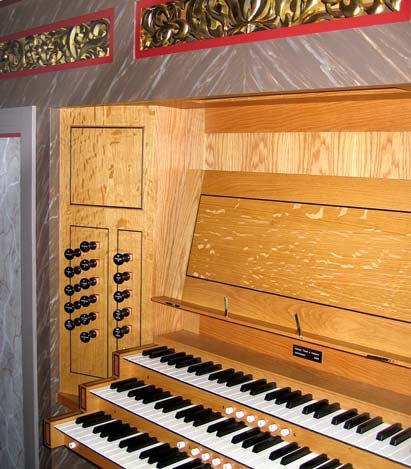

Nesbyen console

The casework marbling and gilding was executed by Sigmund Haraldseth, a local artist, to complement the interior decoration of the church. In contrast, the console is of polished oak with blackwood inlays to the stop-jambs, keycheeks and music rest. The natural keys are covered with Bone, with Blackwood sharps.

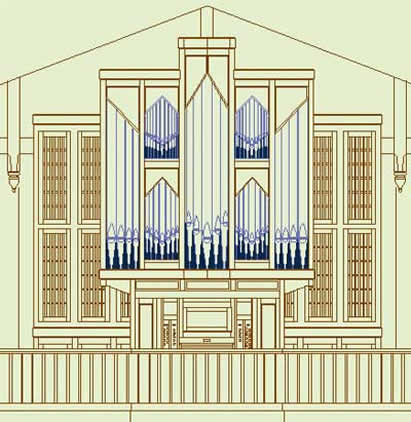

Drawing of Nesbyen case

The organ stands in the rear gallery of the church. Limitations of height, and the spacing of the roof beams lead to the layout of the instrument being designed with the three manual divisions housed in the main case, the Great at impost level with the Swell box above, and the Echo organ sitting in the lower case behind the console. The Pedal pipes stand in divided cases behind the instrument on either side of the rear entrance to the gallery.

The organ in the workshop, prior to delivery and painting

This photograph shows the organ erected in our workshop, prior to delivery and painting. The connecting platform between the main case and the pedal cases contains the wind trunks and mechanical action to the pedal soundboards.

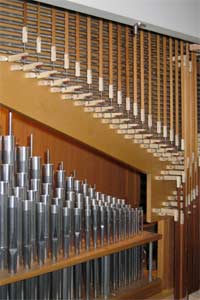

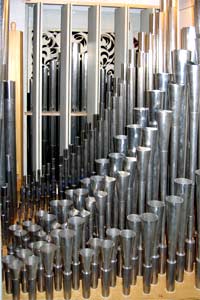

Swell pipework  Echo Cornet and Great Rollerboard

Above left a view into the Swell, with the reeds in the foreground, and looking through to the shutters, with the front pipes and carved pipeshades just visible. On the right, the Echo Cornet is arranged on either side of the Great rollerboard inside the lower casework.
